Hello,

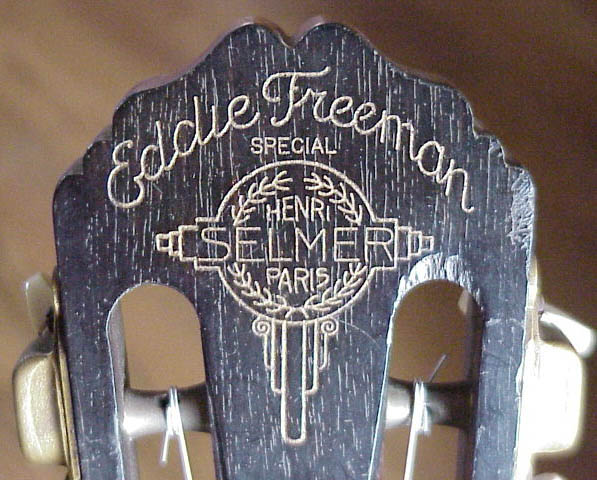

Do you know or/and have some link that explain how to produce a selmer like logo in gold color in the headstock :



Thanks you for your help :)

Regards.
Top
 Profile

douglas ingram
PostPosted: Tue Jul 19, 2011 2:59 pm
Offline
Koa
Koa
User avatar

Joined: Wed Sep 26, 2007 12:55 am
Posts: 1505
Location: Lorette, Manitoba, Canada
First name: Douglas
Last Name: Ingram
City: Lorette
State: Manitoba
Country: Canada
Focus: Build
I used an outline of the Selmer marque and inset my name where the letters would go, then transferred the design to the headstock using carbon paper. I used a small V groove chisel to incise the line, then painted the gold paint in the small groove. Any excess was scraped/sanded away. Then I varnished over.

Originally they used a pantograph which would incise the line, then the gold paint was applied to the groove.


You do not have the required permissions to view the files attached to this post.

_________________
Expectation is the source of all misery; comparison the thief of joy.
http://redrivercanoe.ca/
Top
 Profile

rdpdo
PostPosted: Tue Jul 19, 2011 3:45 pm
Offline
Walnut
Walnut

Joined: Mon Nov 15, 2010 10:50 am
Posts: 15
First name: alexandre
Last Name: bouboule
City: Fontainebleau
Country: France
Focus: Build
Status: Amateur
Cool !! Thanks you ;)
Top
 Profile

Bob Garrish
PostPosted: Wed Jul 20, 2011 3:40 pm
Offline
Brazilian Rosewood
Brazilian Rosewood
User avatar

Joined: Tue May 02, 2006 9:02 am
Posts: 2351
Location: Canada
First name: Bob
Last Name: Garrish
City: Toronto
State: Ontario
Country: Canada
Status: Professional
Gold leafing it would be even shinier if you're not aiming for a strict reproduction. They have cheap faux gold leaf at good art stores.

_________________
Bob Garrish
Former Canonized Purveyor of Fine CNC Luthier Services
Top
 Profile

My Dog Bob
PostPosted: Wed Jul 20, 2011 6:30 pm
Offline
Contributing Member
Contributing Member

Joined: Sun Oct 05, 2008 8:50 pm
Posts: 239
Draw up thew artwork.. bring it to a laser cutter/engraver (pretty cheap), once engraved (ideally with paper glued to the face), paint the engraved grooves with gold paint then peel the paper or sand it off. Only the gold will be left in the grooves. Looks dead nuts original..

Pete
