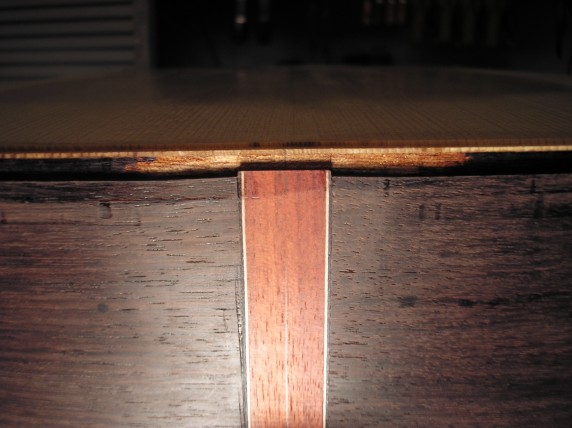

Well,I thought I would post a few pics of my first attempt at this fun part of building. The first is the wedge trimmed and ready for the 45*.

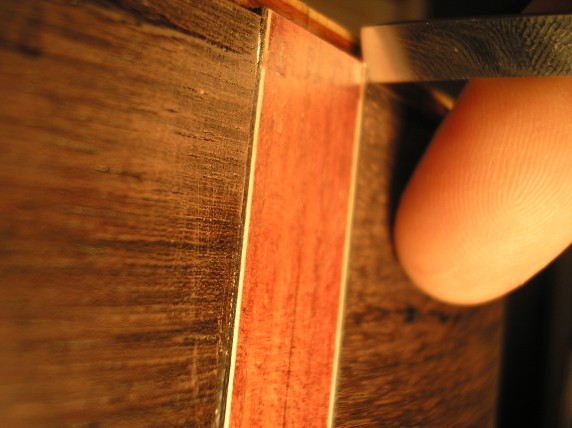

Here I'm cutting with a 1/4" chisel(VERY sharp btw)

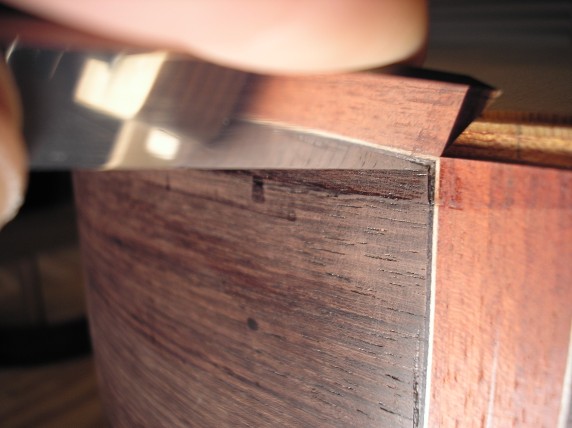

Here is the reflection on my polished chisel.This is a
neat trick!

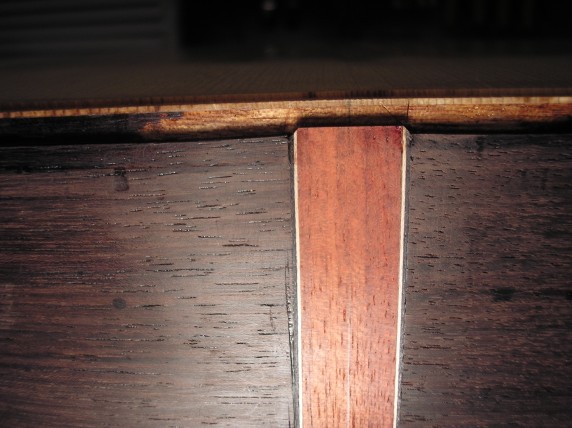

The 45's cut.

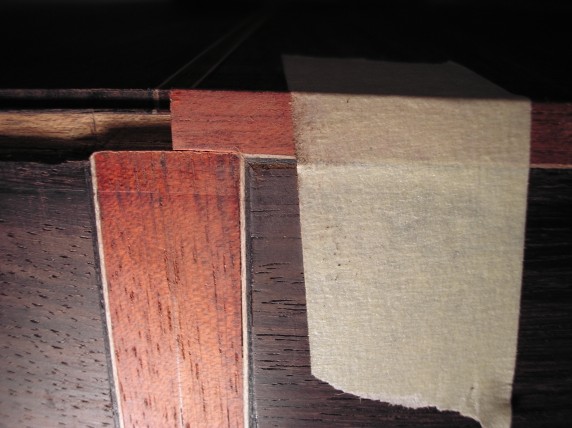

I cut the binding to size and it fit (after a couple of trys)


Success! Now three more to do....

_________________
Anderson Guitars
Clearwater,Fl. 33755

Almost there buddy! Looks better than anything I have done. I dont do mitres, like windows and such. You get big props from me for trying and making the first one look great. I bet the whole thing is going to be pretty.

Homeboy

Nice Dave...that's a big step up the skill ladder. Your chisel is perfect for the job...nice and scary sharp! Congratulations!

_________________
JJ
Napa, CA
http://www.DonohueGuitars.com

Dave,

Looks great! Fun, ain't it, specially when they turn out well.

_________________
now known around here as Pat Foster
_________________
http://www.patfosterguitars.com

Nice pictorial Dave, thanks. I still need to try that.
Is there any trick to ajust and trim the wedge at just the right heigth?

Thanks guys,It is fun doing this stuff.I think on my next guitar If I ever get to it, I'll use 3 purflings. It seems like it would be a bit easier to cut the 45's.I wouldn't want to try only a single line!
Alain- I just trimmed the wedge and used a needle file to get the heighth to fit with the binding.

_________________
Anderson Guitars
Clearwater,Fl. 33755

Great job. I didnt realize you cut the mitre and left the top portion of the end graft equal to the top point of the mitre. Looks like I have been making more complicated than it is. Thanks for the pictures

Right on Dave! Great looking work. That's the best trick, the old 'use the reflection' ploy. Works great.

Keep up the great work!

_________________
I'd like to be able to prove, just for once, that money wouldn't make me happy...

WOW Dave, great job on the mitre, thanks for the tutorial, it's on my long list of things to experiment on, you rock bud!

PS: Please don't bring that sharp chisel near Mom's guitar ok!

Fun ain't it?

Is that Mahogany binding you got there Dave? (Wood recognition is one thing I can certainly get better at)

That looks nice indeed. It would have been nice to go with another white purfling line as the black will almost disappear on you against that dark EIR. But these are the things we learn along the way.

Oh.....and nice shop chair you got there. Mines a plastic stool that is very uncomfortable to sit on for long periods of time.Rod True39085.9937037037

_________________
My Facebook Guitar Page

"There's really no wrong way, as long as the results are what's desired." Charles Fox

"We have to constantly remind ourselves what we're doing....No Luthier is putting a man on the moon!" Harry Fleishman

"Generosity is always different in the eye of the person who didn't receive anything, but who wanted some." Waddy Thomson

Looking good! looking forward to seeing it all finished up

Mike

Dave,

Thats an interesting looking T shirt...any chance of a few better pics of same.

Nice work on the mitre cut...the reflection trick with the back of the chisel works really well.

Cheers

Very nice job Dave!!
Practice makes perfect ehh!!
Keep it up Brother!

walter

Nice job Dave! The closeup pics do a great job of showing the detail. Very clean shop you have there as well.

_________________
Dave Rector
Rector Guitars

Thanks again everyone,
Rod-yeah, I noticed how the black purf is hard to see against the rosewood so on the next one I will do another thin white as you say.
Martin-thats an old Phil Keaggy shirt
Walter-Yep! And I need a lot more practice DaveAndy39086.4063194444

_________________
Anderson Guitars
Clearwater,Fl. 33755

Here you go Martin.....
link to Phil

_________________
Anderson Guitars
Clearwater,Fl. 33755

Looking good Dave!

_________________
Support the OLF! Bookmark our STEWMAC link Today!
Lance@LuthiersForum.com

Dave I use to fret over end graft and center seam miters but after the 12 segment rosette I did on the Narra/Carp guitar for Mark Macalik this fall with 48 miters on just the rosette alone, doing 8 aint nothing anymore



good job by the way MichaelP39086.7157291667

[QUOTE=DaveAndy] Here is the reflection on my polished chisel.!

[/QUOTE]
Okay, now you're just showin' off!    Being a miter maiden myself, my hat is tipping in your direction.

Neat trick with the chisel. Is that a Blues Creek Guitar cradle you’re using for additional support of the guitar body? Another neat idea. Wow and looking good.

_________________
Michael Lloyd

“I was born to ignorance, yes, and lesser poverties ...
I was born to privilege that I did not see ... I didn’t know it, but my way was paved” – John Gorka

[/QUOTE]
Okay, now you're just showin' off!    Being a miter maiden myself, my hat is tipping in your direction. [/QUOTE]
Thanks Carlton....mitre maiden
Mlloyd- That is the guitar cradle from my binding jig, from LMI. I use it to hold the guitar for a lot.Just clamp it to the bench and sand or whatever.

_________________
Anderson Guitars
Clearwater,Fl. 33755

That is one shiny chisel. Nice pics and lovely binding work.

_________________
"Building guitars looks hard, but it's actually much harder than it looks." Tom Buck

Well done Andy and great pictures!

Looks good Dave. I meant to do that on two guitars so far, but the router manged to just go all the way around the tail both times

But 3 more chances are coming up!

Jim
