Well, I've been working on my Celtic rosette from Depaule. It is white MOP and made from 160 pieces, the best I could count.

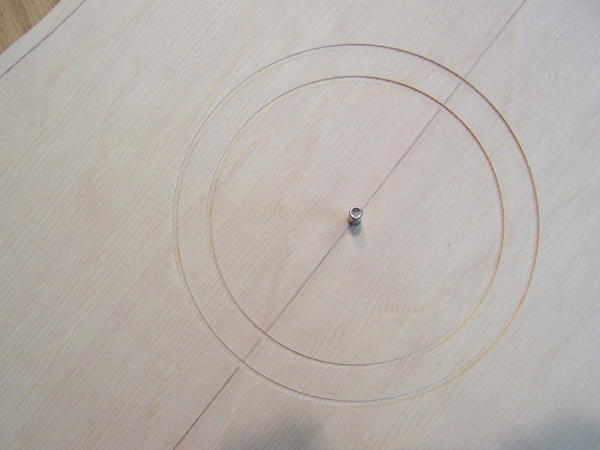

First, I routed two grooves for some purfling boundaries.

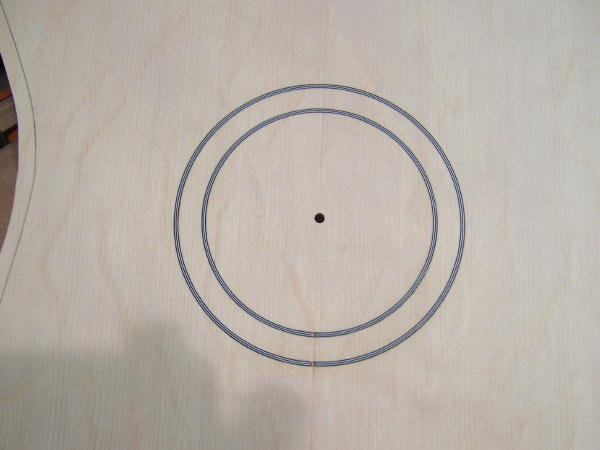

Then I installed the rings:

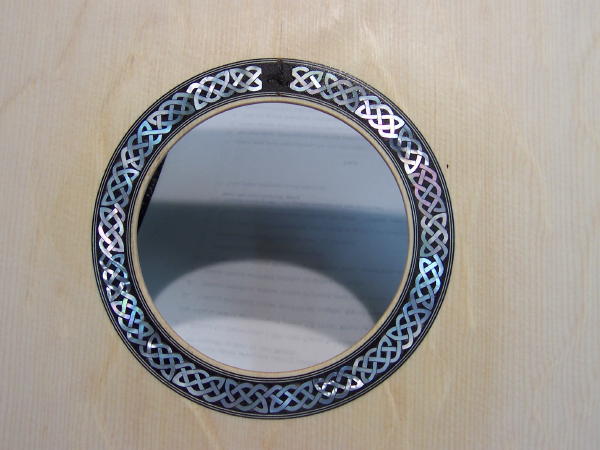

Next, I routed out all the area between the rings (I really, really can recommend the new StewMac circle attachment with the micro adjustment). Then installed the Celtic ring:

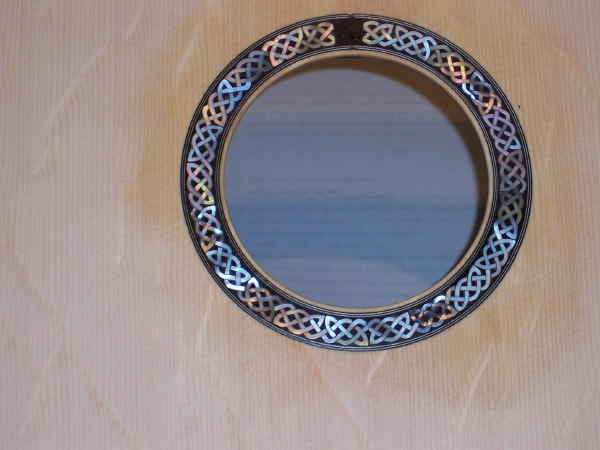

Here is another shot with the light from a different angle.





The rosette comes from Andy glued onto a piece of cardboard. I used clear duct tape and pressed it very tightly onto the top of the pearl then soaked the whole thing in hot water about 5 minutes. That released the rosette from the cardboard and the tape kept it all together. I turned it over and cleaned the glue residue from the bottom side of the MOP and trimmed the tape close to the rosette. Filled my groove with epoxy colored with ebony dust, flipped the rosette over and placed it in the groove intact. Clamped it down overnight and started cleaning it up today. Still a little cleaning to do, but I'm pleased. I was really worried the thing would come apart and I'd have to reassemble it. I had to sand it down and fill pinholes three times to get them all.

Ron

_________________
OLD MAN formerly (and formally) known as:

Ron Wisdom

Somewhere in the middle of Arkansas......

That is gorgeous, Ron!



_________________
Give me 50 cents worth of regular.
Check my oil too, if you don`t mind,,,

Lovely. Thank you also for the tip with the tape. I inlaid a rose (flower) to a head stock but never thought to use the tape system you did. Turned out well but probably a lot simpler to do your technique.

_________________
Greg
http://garibaldiinstruments.com/

Great job, Ron. Looks great!

_________________
now known around here as Pat Foster
_________________
http://www.patfosterguitars.com

Absolutely stunning inlay!



Nice work

_________________
Reguards,

Ken H

Looks awesome
So that is how you do it. I had one I ruined!!!
It is in a million pieces!!!!!

_________________
Andy Z.
http://www.lazydogguitars.com

Thanks Ron, I have been wanting to try one of those rosettes from Andy... Now I gotta' do it. Your's looks great! Thanks for the help!

Long

_________________
"No man ever steps in the same river twice, for it's not the same river and he's not the same man.” -Heraclitus of Ephesus

Ron that's great, as you may remember, I too wrecked one of these celtic inlays. I now have a new one and will be trying it again very very soon, yours has actually given me the hope that I can do it, yours looks awesome.

Thanks Ron, great job

_________________
My Facebook Guitar Page

"There's really no wrong way, as long as the results are what's desired." Charles Fox

"We have to constantly remind ourselves what we're doing....No Luthier is putting a man on the moon!" Harry Fleishman

"Generosity is always different in the eye of the person who didn't receive anything, but who wanted some." Waddy Thomson

Very Cool. And a little scary!
Good idea using the duck tape.
Just a little aside... If you mix your Epoxy with black Tempra paint powder, it flows out more smoothly & you may have less filling to do. It doesn't take a lot, & it sets up very black.

Ron,

That looks fabulous Another of those "take a deep breath and pray" guitar making rites of passage under your belt.

The bearclaw top looks fabulous too - I am a sucker for bearclaw.

_________________
Dave White
De Faoite Stringed Instruments
". . . the one thing a machine just can't do is give you character and personalities and sometimes that comes with flaws, but it always comes with humanity" Monty Don talking about hand weaving, "Mastercrafts", Weaving, BBC March 2010

Great work Ron,

Looks stunning as does that savagely clawed top you have there.

Thanks for sharing Mate great tip with the tape.

Cheers

Kim

Hey ron, that looks beutiful....

Thanks for showing us.

cheers,
Claire

Ron, It’s a beautiful rosette! I’m a real fan for that Celtic stuff!

Thanks for the explanation on how to inlay it. I’d been wondering how its done. Now I feel a lot
more comfortable in attempting it.

Also, I’ve been to Andy’s site, they have a great variety of inlays, some of them quite stunning!

_________________
Everything has beauty, But, not everyone see's it!

Great looking Ron! Scary the first time!

_________________
Billy Dean Thomas
Covina, CA

"Multi famam, conscientiam, pauci verentur."
(Many fear their reputation, few their conscience)

Looks great Ron !! I really like the second photo and the way it reflects the light from a different angle. It's bound to be a real eye-catcher.

I'm not clear on how you got the duct tape to release. Did you clamp it with the rosette as you epoxied it into the top? A few photos for some clarification would be great.


Regards,
Peter

_________________
Peter

Well done Ron ! I agree with all the above . Looks incredible !


_________________
CRAIG LAWRENCE of AUSTRALIA
_____________________________________________

Great looking work, Ron. Keep it up!

That looks great. Thanks for the how too tips. They obviously worked well

That looks great Ron and I think your explanation in pulling this off will help
others down this path.

Thanks for sharing

_________________
Christopher C. Cordle
North Muskegon, MI

http://www.yardsaleunderwear.com
http://www.facebook.com/christopher.cordle

[QUOTE=ToddStock] Looks great, Ron, and thanks for the pics - I've been eying this rosette, but with green-tinted epoxy and green body purfling for a Saint P's Day parlor. No shamrocks, but might think about snakes for fret markers.[/QUOTE]

Or pints of Guiness

_________________
Dave White
De Faoite Stringed Instruments
". . . the one thing a machine just can't do is give you character and personalities and sometimes that comes with flaws, but it always comes with humanity" Monty Don talking about hand weaving, "Mastercrafts", Weaving, BBC March 2010

Thanks a lot for sharing this Ron.I'm sure you helped a lot of us to have the confidence to do this!Good tip- using tape ! Beautiful job

_________________
Anderson Guitars
Clearwater,Fl. 33755

Ron that rosette looks terrific up against that bearclaw top. I really like celtic art.

Question -- why did you use epoxy and ebony dust as opposed to CA and ebony dust?

WOW

_________________
Say what you do, Do what you say.

Wow, thank you for sharing that. The tape tip is an awesome idea.
