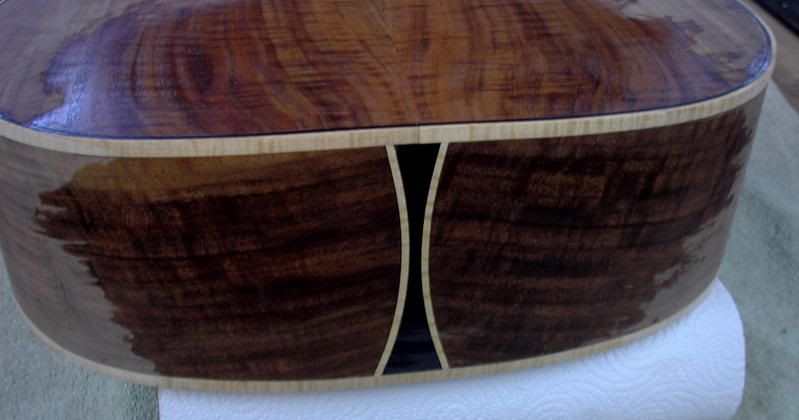

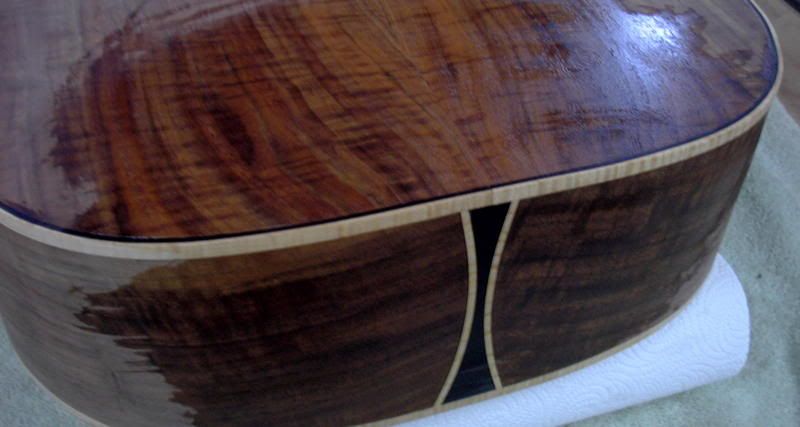

I showed a few pics of a tail-wedge a week or two ago, since then I ended up cutting out the tail wedge as it cracked when I was cutting the binding ledge. I also had the binding glued on when I notice it was cracked as well....Sooooo, I cut everything off and started over, this is what I ended up with, please let me know what you think, I will have an African Blackwood Bridge and an ebony fretboard with flamed maple binding as well.



http://i15.photobucket.com/albums/a361/GregGwaltney/frontals hot1.jpg">

Cheers,
Greg

_________________
Gwaltney Guitars

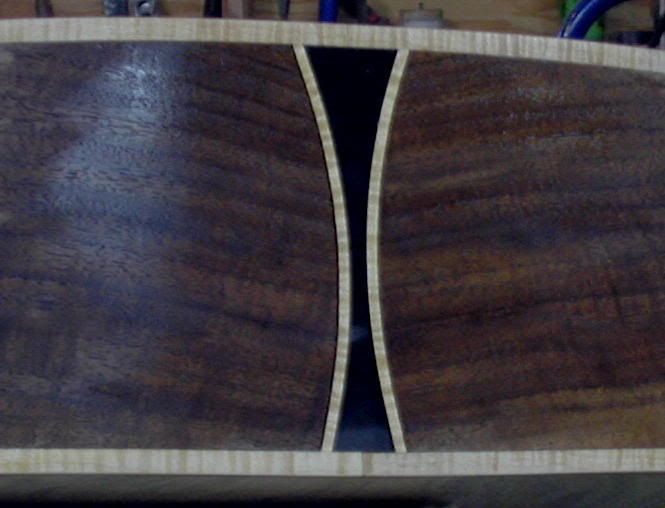

Here is another shot that didn't show up on the first post.



Greg

_________________
Gwaltney Guitars

I'd say you ended up with a great-looking enhancement! It was all
intentional, too!

_________________
now known around here as Pat Foster
_________________
http://www.patfosterguitars.com

Great save!! It looks like you planned it that way all along.

Very nice job!
Another 'mistake with a silver lining'! The end result is very clean and original looking.
John

Yeah, nice job, Greg!

_________________
Give me 50 cents worth of regular.
Check my oil too, if you don`t mind,,,

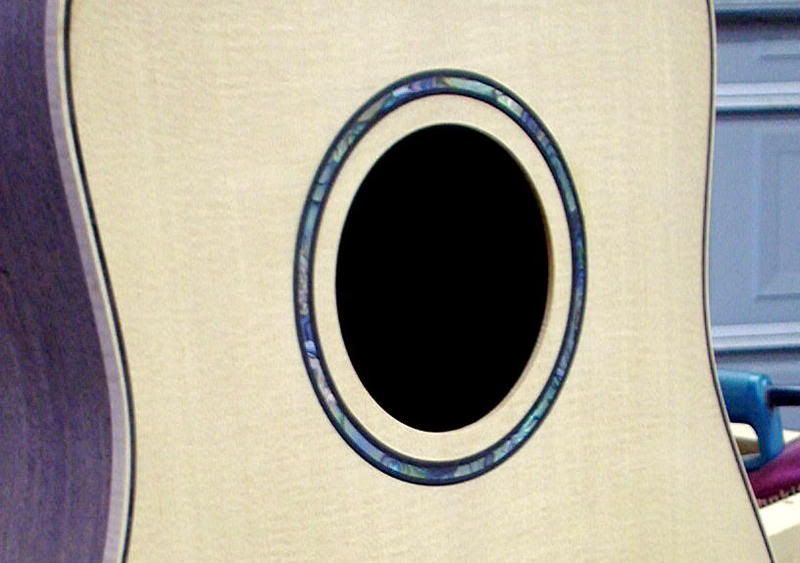

Very nice. I like the paua rosette...

_________________
"I want to know what kind of pickups Vince Gill uses in his Tele, because if I had those, as good of a player as I am, I'm sure I could make it sound like that.
Only badly."

Greg I like it.

You have created the "hour glass" wedge. Some one else may have seen one before but I don't recall seeing this design.

I would have never know it was a "plan B".

Very nice Greg. Where did you get the flamed maple binding. I've bought some, but the figure isn't as nice and consistent as yours.

The bookmatching on the back, and the rosette are really nice also.

Gene

_________________
Gene

Politicians and diapers must be changed often, and for the same reason- Mark Twain

Thanks guys, yeah, plan B turned out O.K.

Gene, I bought some precut flamed maple bindings before as well and was never happy with the "flame" part of the binding. So I located a billet with some strong flame and now cut my own binding, it is a time consuming process versus buying it ready to go, but seems worth to me at this point.

Cheers,
Greg

_________________
Gwaltney Guitars

Nice job Greg .. to me, strictly my opinion, it needs a black purf line on the sides - there is a black line everywhere else including the wedge, just a consistency of design thing I think about a lot when putting guitar aesthetics together. But then again maybe not - to each his own. Just a thought.

_________________
Tony Karol
www.karol-guitars.com
"let my passion .. fulfill yours"

Tony,

I can't disagree with you, I saw that too, if I did it again I would add the black purfling on the side...oh well, I think it still works?

Greg

_________________
Gwaltney Guitars

Its fine Greg ... its very well done, and that matters more to me than aestetics. Make it work first, beauty later !!! Nothing is out of place.

For a real contrast, check out an original issue John Mayer OM model .. I love the guy, but he has weird taste .. bwb with shell rosette, herringbone edge purf, silver inlaid purf bridge .. to me its too much clashing ...

_________________
Tony Karol
www.karol-guitars.com
"let my passion .. fulfill yours"

I am with Tony here. It is very nice as it is but your next shot at this end graft mitered side purfling will make that shape have a more refined appearance and it really is only about an hours or less more work. Personally I think a two or three line (w/b or bwb) will really make it pop.

The purfling line will lessen the eyes tendency to focus on the 90* change in grain orientation and the butting joint of the maple.MichaelP39069.6503819444

Greg,
I think you are doing a great job. And I'm sure your next one will be even better!

_________________
Peter M.
Cornerstone Guitars
http://www.cornerstoneukes.com

Thanks Everyone.....I agree on all accounts!!


Cheers,
Greg

_________________
Gwaltney Guitars
