Peter J
 Post subject:
PostPosted: Tue Oct 31, 2006 10:07 am
Offline
Koa
Koa
User avatar

Joined: Wed Dec 07, 2005 9:08 am
Posts: 535
First name: Pete
Last Name: Liccardello
City: Eden Prairie
State: Minnesota
I thought I would share one of my handier tools that I use extensively when setting up string height at the nut and string action at the 12th fret. Many of you may already have one.

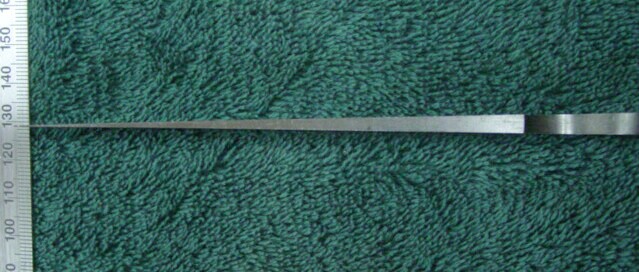

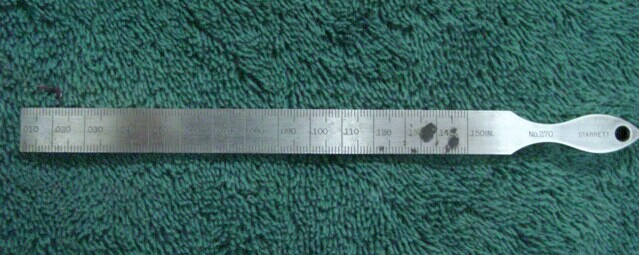

It's a Starrett #270 Taper Gauge and is graduated from 0 - 4 mm on one side and 0 - .150" on the other. It has saved me a lot of time in shuffling through my feeler gauges. Now I can get a reading of height anywhere on the fretboard in much less time.

I'm sure that there are many other uses for it that I just haven't thought of as yet...










Great for gauging gaps for shims too.


Regards,

Pete

_________________
Peter
Top
 Profile

KenMcKay
 Post subject:
PostPosted: Tue Oct 31, 2006 10:20 am
Offline
Cocobolo
Cocobolo

Joined: Sun Jul 31, 2005 2:40 am
Posts: 210
Location: United States
GREAT TOOL. I wonder if they make a thicker one? Thanks!
Top
 Profile

Keith M
 Post subject:
PostPosted: Tue Oct 31, 2006 10:37 am
Offline
Cocobolo
Cocobolo

Joined: Wed Dec 29, 2004 5:39 pm
Posts: 254
Location: United States
Yep, here

Thanks Pete,cool Idea.
Top
 Profile

Andy Zimmerman
 Post subject:
PostPosted: Tue Oct 31, 2006 10:42 am
Offline
Brazilian Rosewood
Brazilian Rosewood
User avatar

Joined: Fri Jun 10, 2005 9:51 am
Posts: 2148
Location: San Diego, CA
First name: Andy
Last Name: Zimmerman
City: San Diego
State: CA
Zip/Postal Code: 92103
Country: United States
Focus: Build
Very Nice
Starrett makes the best stuff....pricey but the best

_________________
Andy Z.
http://www.lazydogguitars.com
Top
 Profile

Shawn
 Post subject:
PostPosted: Tue Oct 31, 2006 11:31 am
Offline
Contributing Member
Contributing Member

Joined: Thu Jan 06, 2005 12:19 pm
Posts: 1051
Location: United States
I have a poor mans equivalent to that tool...

If you go to one of the larger auto parts chains, I found a small disk about 1.5 inches in diameter with that same tapered ramp around the diameter that is used as a quick spark plug gap tool. By rotating the disk until it feels flush with a top or other part I can quickly get the thickness of the part.

Note that the measurements are in inches (thousands) but there is a metric conversion table on the back face (necessary if you are building classical).

It cost $2.95

Im not saying it is a Starrett and they make great stuff well worth the price but this was a quick cheap alternative...I keep it on my keychain.
Top
 Profile

Peter J
 Post subject:
PostPosted: Tue Oct 31, 2006 12:11 pm
Offline
Koa
Koa
User avatar

Joined: Wed Dec 07, 2005 9:08 am
Posts: 535
First name: Pete
Last Name: Liccardello
City: Eden Prairie
State: Minnesota
You can get these gauges on Ebay for very reasonable prices if you watch for them.

http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&rd=1&item=1900 45942363&ssPageName=STRK:MEWA:IT&ih=009

PetePeter J39021.8450462963

_________________
Peter
Top
 Profile

npalen
 Post subject:
PostPosted: Tue Oct 31, 2006 12:43 pm
Offline
Koa
Koa
User avatar

Joined: Sat Jan 08, 2005 4:19 am
Posts: 1534
Location: United States
First name: Nelson
Last Name: Palen
taper thickness gauge
Here's another that's very handy for general woodworking.
Nelson
Top
 Profile

MSpencer
 Post subject:
PostPosted: Tue Oct 31, 2006 4:30 pm
Offline
Koa
Koa

Joined: Sat Feb 11, 2006 10:40 am
Posts: 1286
Location: United States
Very cool tool

Mike
Top
 Profile

Billy T
 Post subject:
PostPosted: Tue Oct 31, 2006 7:19 pm
Offline
Brazilian Rosewood
Brazilian Rosewood
User avatar

Joined: Sun Dec 25, 2005 7:58 pm
Posts: 2946
Location: United States
Thanks Pete, Shawn, and Nelson! I can put my stack of little pieces of sheet metal away now!

_________________
Billy Dean Thomas
Covina, CA

"Multi famam, conscientiam, pauci verentur."
(Many fear their reputation, few their conscience)
